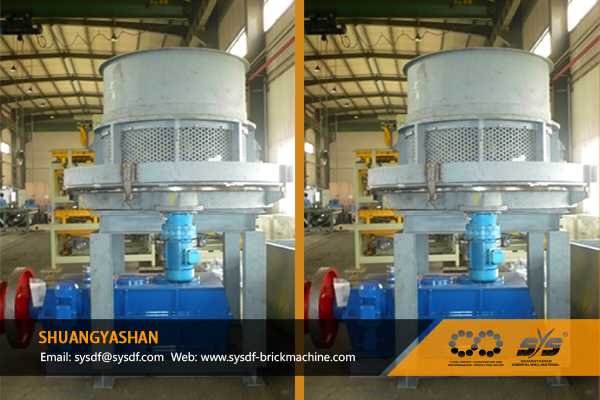

Disc Feeder

Dscription:

The disc feeder is a round vibrating feeder main applied to feed the material to the next process with continuous and uniform processing. This product is suitable for transporting loose material. ( not suitable for handling materials with large size or poor liquidity)

It mainly consists of motor, reducer, coupling, large bevel gear, bevel gear small, disc, base, enclosures, racks and other components.

Technical Parameters:

Model	YG100
Capacity  m3 /h	≤14
Feeding Size  mm	≤50
Water Content	≤10％
Disc Diameter  mm	1000
Motor Model and Power  kW	Y112M-6, P＝2. 2
Reducer Model	JZQ350-Ⅲ-1Z (i＝31.5)
Dimension  mm	1743.5×1280×1500
Weight  kg	950
